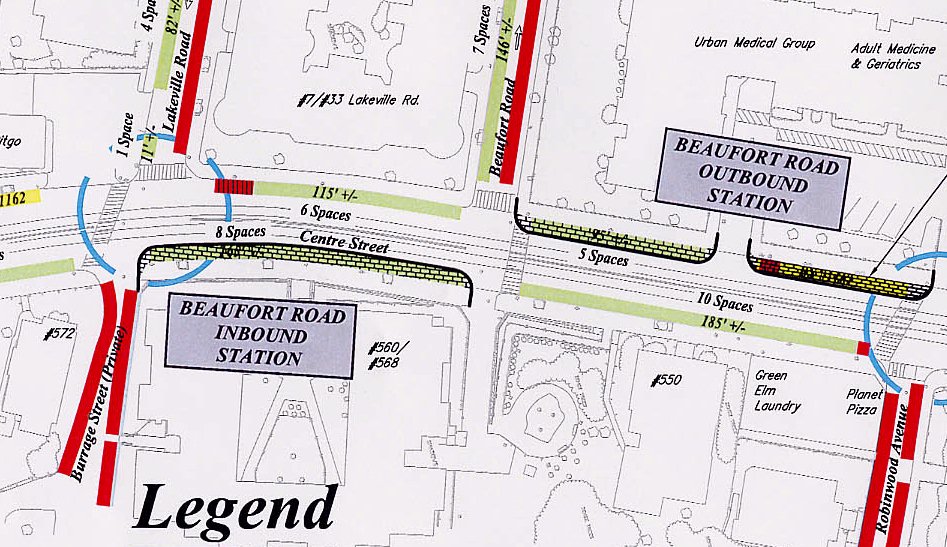

This page shows the preliminary site design for a Beaufort Rd station on the Arborway line (illustration courtesy of the MBTA). Note that the proposed platforms are shown by a darkened curbsite -- the text in gray boxes is just a label, and is not always at the exact station location.

Also available is an aerial photo of the area surrounding this site (courtesy MIT/MassGIS).
